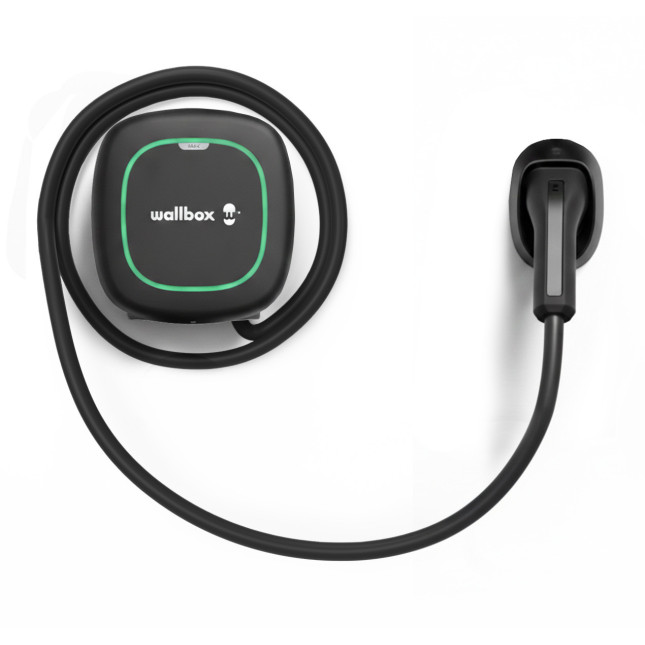

The WALLBOX Pulsar Max charging station—connected and with adjustable power output—designed for home use, indoors or outdoors
The WALLBOX Pulsar Max charging station—three-phase—adjustable from 2.3 to 22 kW—Bluetooth—Wi-Fi—with a 5-meter Type 2 cable included —is powered by a three-phase connection. Its charging current can be adjusted instantly and at any time between 8A and 32A via the Wallbox app. The charger can therefore be configured to adapt to the available power in your home thanks to its Power Boost feature. Its attached Type 2 cableensures safe charging of your electric car in Mode 3.
Usingthe Wallbox app, you can connect your charging station to your smartphone via Bluetooth or Wi-Fi. The app allows you to manage the following settings:
- Enable/disable charging remotely
- Adjust the charging power between 2.3 and 22 kW
- Schedule charging for specific time slots (to charge only during off-peak hours, for example)
- Configure dynamic charging, if Power Boost is installed on the line

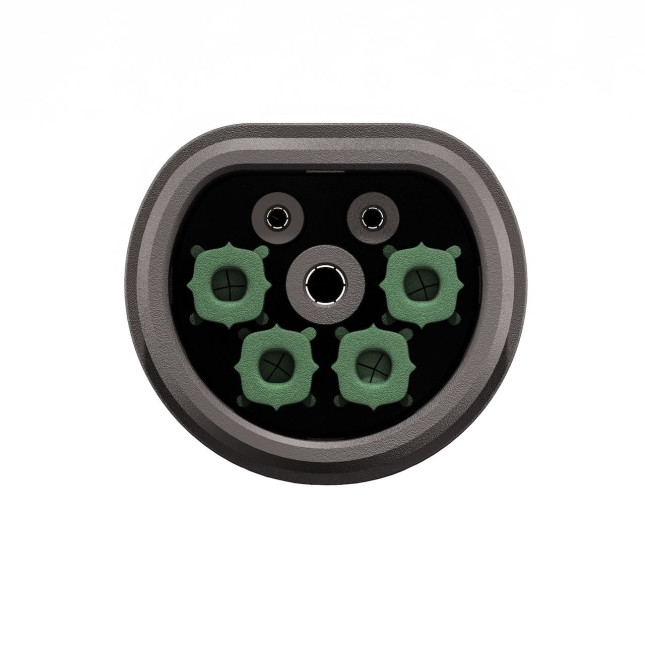

5-meter Type 2 cable included
The charging station comes with a 5-meter Type 2 charging cable already attached. This charging station is therefore compatible with all Type 2 vehicles.
Wall-mounted cable holder included
The charging station comes with a wall-mounted cable holder that allows you to securely store the Type 2 connector after charging your vehicle.
Plug & Play activation
The charging station is Plug & Play; as soon as you plug the cable into your vehicle and the station, charging begins.
Charging
From 10 km (at 2.3 kW) to 70 km (at 11 kW) of additional range per hour of charging.
Compact Size
The Wallbox Pulsar MAX is one of the smallest charging stations on the market. It’s discreet, lightweight, stylish, and practical. Dimensions: 198 x 201 x 99 mm. It’s also rugged (IK10) and resistant to heavy rain (IP55). It can be installed outdoors without rain protection.
Key Features
- Setup: Plug & Play
- Charging current adjustable between 8A and 32A via the app
- Bluetooth and Wi-Fi connectivity: access to the Wallbox app and the Wallbox web portal
- Three-phase power supply
- Terminal block for 10mm² solid cable
- 6mA DC leakage detector integrated into the terminal block
- IP55 and IK08 protection: resistant to heavy rain and impacts
- 5-meter Type 2 cable attached (Phoenix Contact)
- Wall-mounting kit included
Electrical Protections
The following electrical protections are mandatory and must be installed on a dedicated circuit. They have been approved by electricians and EV charging station experts and comply with current French regulations.
Protections to be installed for three-phase connections:
- 40A Type A Hi residual current device (RCD) - 3P+N - 30mA - (e.g., HAGER BDH440F) - not included. A Type A RCD meets standards since a ground fault detector is already integrated into the terminal block.
- 40A circuit breaker - 3P+N - Curve D - 10kA short-circuit rating (e.g., HAGER NGT840) - not included
Power Boost Dynamic Load Module
The CARLO GAVAZZI Power Boost also features an energy analyzer function.
The Power Boost function allows the charging station to adapt the charging power in real time to your vehicle
within the limits of your electrical system, toprevent the circuit breaker from trippingdue to overload.
Power Boost therefore ensures that you always charge your vehicle at the maximum available power
without ever tripping the circuit breaker.
Power Boost also enables the ECO SMART feature, allowing you to configure 100% solar charging for homes equipped with solar panels.
You can choose between two modes:
- Full-Green mode: You’ll charge using 100% green energy, since the charging station will detect when there’s enough surplus energy to allow you to start charging.
- Eco Mode: This mode combines both 100% solar energy and grid power to ensure continuous charging power.
The Power Boost is compatible with theWallbox Pulsar Plus Socketand the Wallbox Pulsar MAX.
Single-phase installation
User Interface
Accessories
Power Boost Dynamic Charge Management Module: This module measures your home’s power consumption in real time and supplies the charging station with all remaining power, without ever tripping the circuit breaker. This allows you to charge at the maximum available power.
Carplug Test
The Carplug team successfully tested the Wallbox Pulsar Pus charging station. Connecting the power supply is simple thanks to the 10mm² terminal block with its lever mechanism. No screwdriver is needed to connect the cables. The electrical safety features selected by CARPLUG are compatible and ensure safe operation.
The charging station powers on quickly and is ready to charge in about 1 minute. We downloaded the Wallbox app, entered the serial number and PUK code, and the connection was established without any issues. We then plugged in the cable: charging started automatically at the current level set in the app. If you change the current level in the app, the charging current changes instantly on the car.
Verdict: Very positive. An ideal charging station for a garage or home, for anyone who wants to track their energy usage, manage their charging windows, and occasionally adjust the charging current.
Want to learn more about wallboxes?
Carplug offers private customers a wide selection of wallboxes within this range. The chargers featured in this section are models perfectly suited for home use. You’ll find products with various capacities, capable of handling and delivering different power levels—primarily 7 kW and 22 kW wallboxes. For private, residential use, every electric car wallbox is fully safe. Check your vehicle’s supported power rating and your meter’s capacity to select the single-phase or three-phase wallbox that’s right for you. A three-phase wallbox can handle higher voltage and deliver greater power. Depending on your electricity consumption and your home, a single-phase wallbox may be sufficient for your needs, or a three-phase model may be more suitable. Outlets and protection solutions to prevent hazards associated with electrical overloads in the home are also available. Find all the specifications in the product sheets. If you still have questions, Carplug’s professionals are available to advise you and help you choose the wallbox model that best meets your needs.
